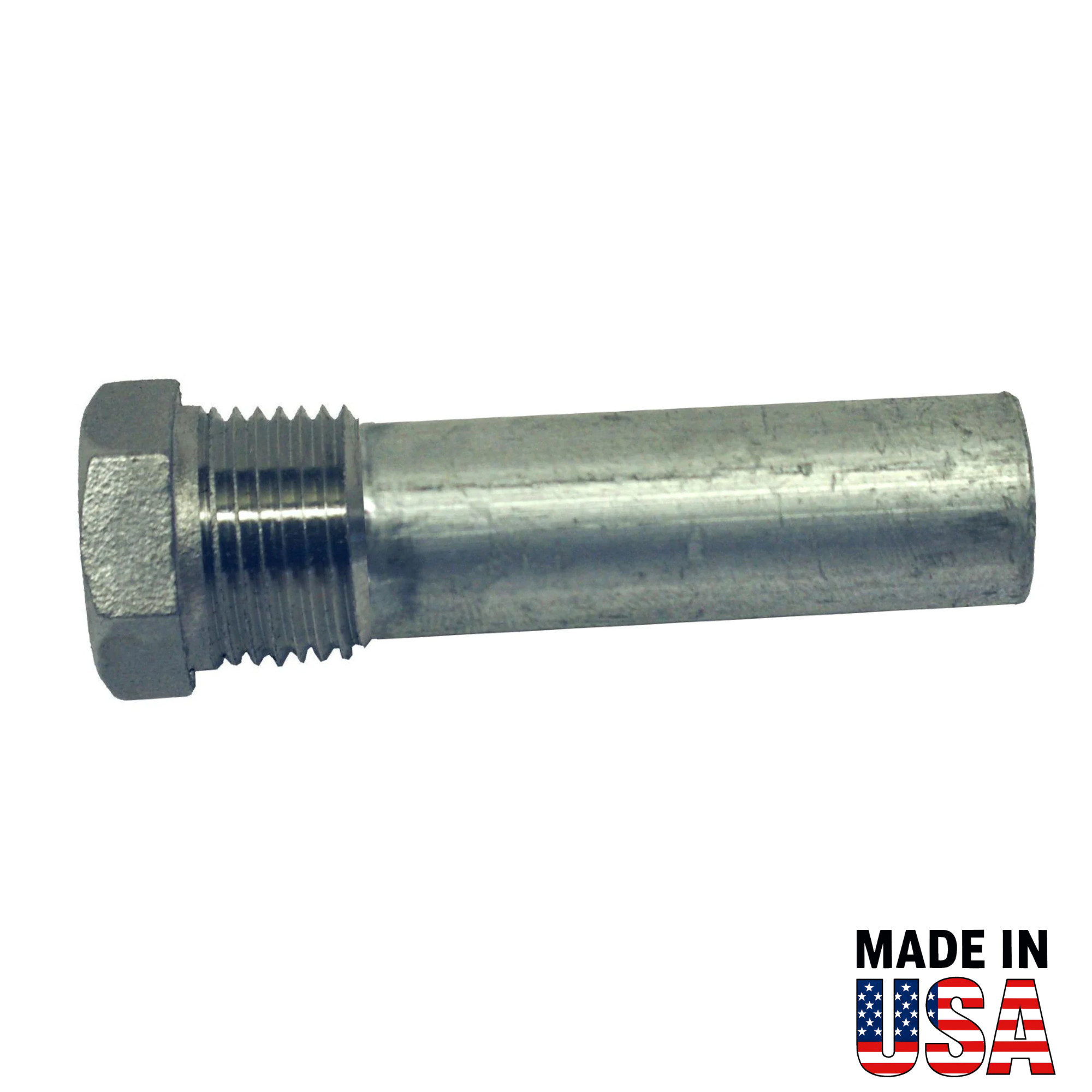

CE-2D Complete Aluminum Pencil Anode with Plug — Replaces E-2D, 1/2" NPT

Need an E-2D replacement? The CE-2D is a complete aluminum pencil anode assembly with a stainless steel 1/2" NPT plug, ready to install in compatible marine heat exchanger and cooling system applications. It provides reliable corrosion protection in salt, brackish, and fresh water.

Aluminum performs better than zinc in heat exchanger applications, helping maintain effective corrosion protection across a wider range of water conditions. The Securecore® steel core helps prevent worn anode sections from breaking away and blocking internal cooling passages.

Key Features

• Complete aluminum pencil anode assembly with stainless steel plug
• Direct replacement for E-2D
• Designed for marine heat exchangers and engine cooling systems
• Aluminum performs better than zinc in heat exchanger applications
• Securecore® steel core helps prevent spent anode material from blocking waterways
• Suitable for salt, brackish, and fresh water
• 1/2" NPT stainless steel plug

Specifications

• Material: Aluminum alloy
• Application: Marine heat exchangers / engine cooling systems
• Core: Securecore® steel core
• Length: 1 3/4" (44.5 mm)
• Diameter: 5/8" (15.9 mm)
• Plug: 1/2" NPT stainless steel
• Water Types: Salt, brackish, fresh

Not sure which pencil anode you need? Use our Pencil Anode Measurement Chart to quickly identify the correct replacement by length, diameter, thread size, and plug type.

Includes

• CE-2D aluminum pencil anode — Qty. 1
• Stainless steel 1/2" NPT plug — Qty. 1
