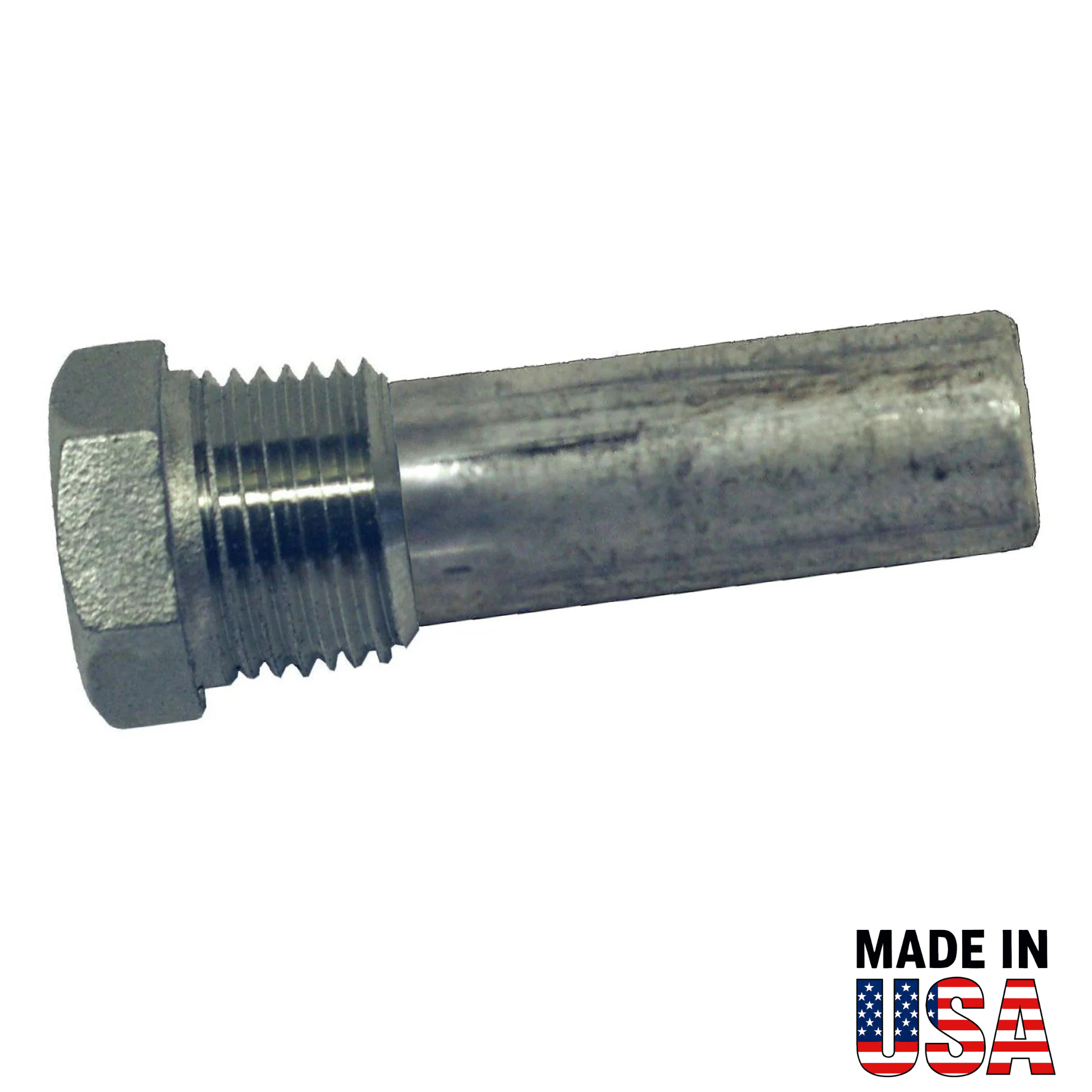

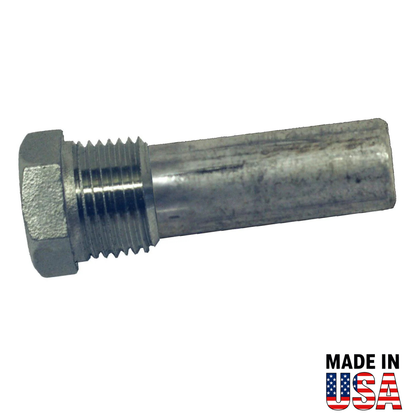

CE-1F Complete Aluminum Pencil Anode with Plug — Replaces E-1F & CME-1F, 3/8" NPT

Protect your marine heat exchanger and cooling system with the CE-1F complete aluminum pencil anode. Designed as a replacement for E-1F and CME-1F anodes, this assembly includes an aluminum pencil anode with Securecore® steel core and a stainless steel 3/8" NPT plug.

Aluminum performs better than zinc in heat exchanger applications, providing reliable corrosion protection across salt, brackish, and fresh water. The Securecore® steel core helps prevent worn anode sections from breaking away and blocking internal cooling passages.

Key Features

• Complete aluminum pencil anode assembly with stainless steel plug
• Replaces E-1F and CME-1F anodes
• Designed for marine heat exchangers and engine cooling systems
• Aluminum performs better than zinc in heat exchanger applications
• Securecore® steel core helps prevent spent anode material from blocking waterways
• Suitable for salt, brackish, and fresh water
• 3/8" NPT stainless steel plug

Specifications

• Material: Aluminum alloy
• Application: Marine heat exchangers / engine cooling systems
• Core: Securecore® steel core
• Length: 1 1/4" (31.8 mm)
• Diameter: 1/2" (12.7 mm)
• Plug: 3/8" NPT stainless steel
• Water Types: Salt, brackish, fresh

Not sure which pencil anode you need? Use our Pencil Anode Measurement Chart to quickly identify the correct replacement by length, diameter, thread size, and plug type.

Includes

• CE-1F aluminum pencil anode — Qty. 1
• Stainless steel 3/8" NPT plug — Qty. 1
