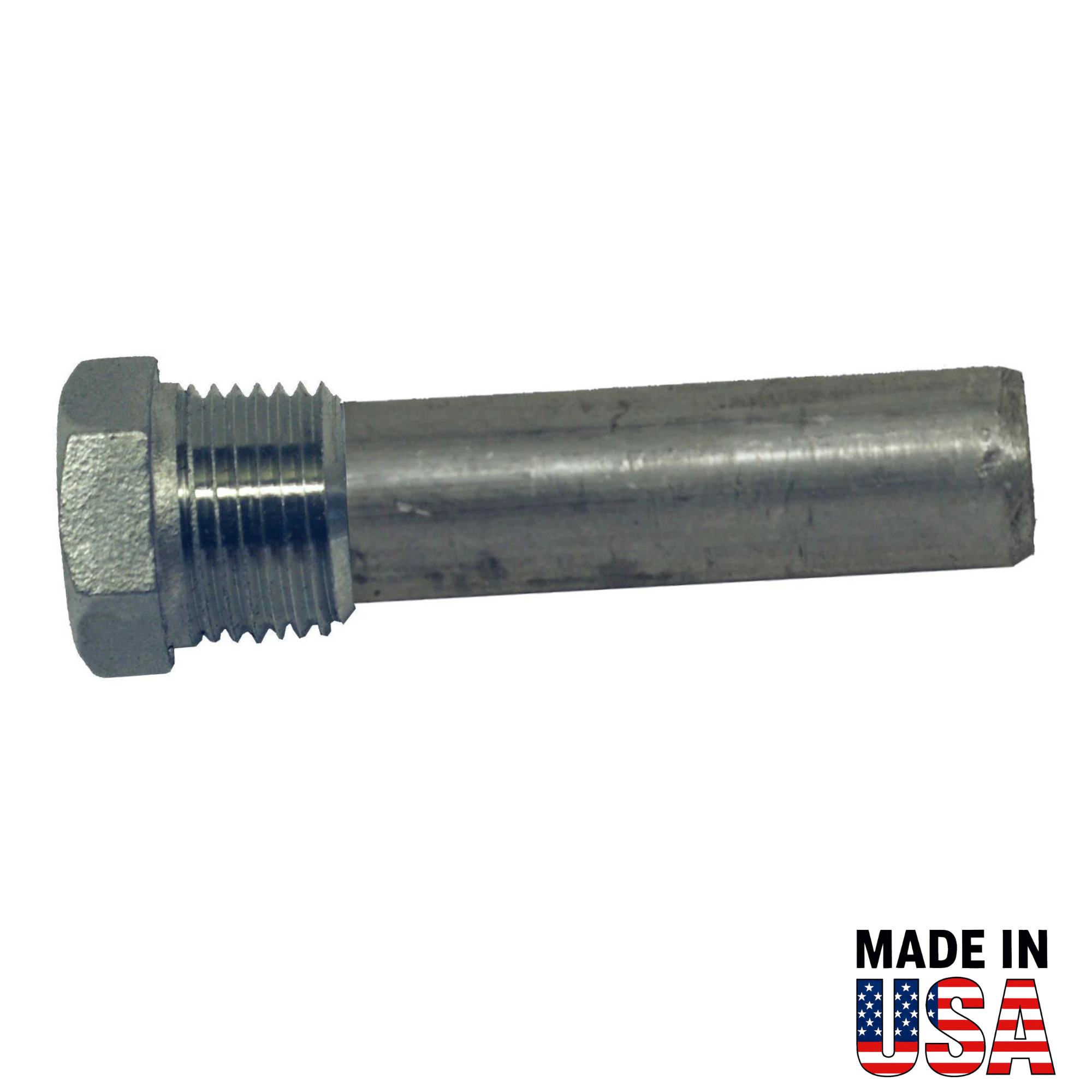

CE-1D Complete Aluminum Pencil Anode with Plug — Replaces E-1D / CME-1D

Protect your engine’s heat exchanger and cooling system from corrosion with the CE-1D complete aluminum pencil anode. Designed as a replacement for the E-1D and CME-1D, this assembly includes the aluminum pencil anode and stainless steel 3/8" NPT plug for convenient installation.

Aluminum anodes perform better than zinc in heat exchanger applications, helping provide consistent corrosion protection across saltwater, brackish water, and freshwater environments. The Securecore® steel core helps prevent a worn anode end from breaking away and blocking critical waterways.

Key Features

• Complete aluminum pencil anode assembly with stainless steel plug
• Designed for marine heat exchangers and engine cooling systems
• Aluminum performs better than zinc in heat exchanger applications
• Securecore® steel core helps prevent spent anode material from blocking waterways
• Suitable for saltwater, brackish water, and freshwater
• Replaces E-1D and CME-1D
• Fits engines using 3/8" NPT pencil anodes

Specifications

• Material: Aluminum alloy
• Application: Marine heat exchangers / engine cooling systems
• Core: Securecore® steel core
• Length: 1-3/4" (44.5 mm)
• Diameter: 1/2" (12.7 mm)
• Plug: 3/8" NPT stainless steel
• Water Types: Salt, brackish, fresh

Not sure which pencil anode you need? Use our Pencil Anode Measurement Chart to quickly identify the correct replacement by length, diameter, thread size, and plug type.

Includes

• CE-1D aluminum pencil anode — Qty. 1
• Stainless steel 3/8" NPT plug — Qty. 1
